Description

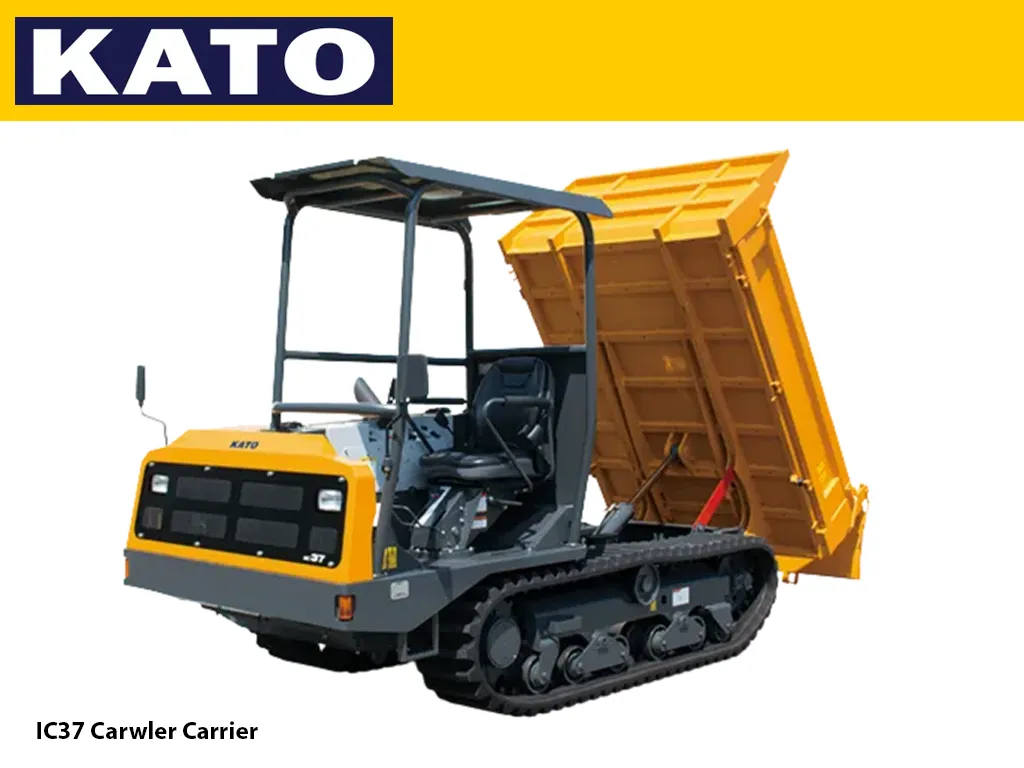

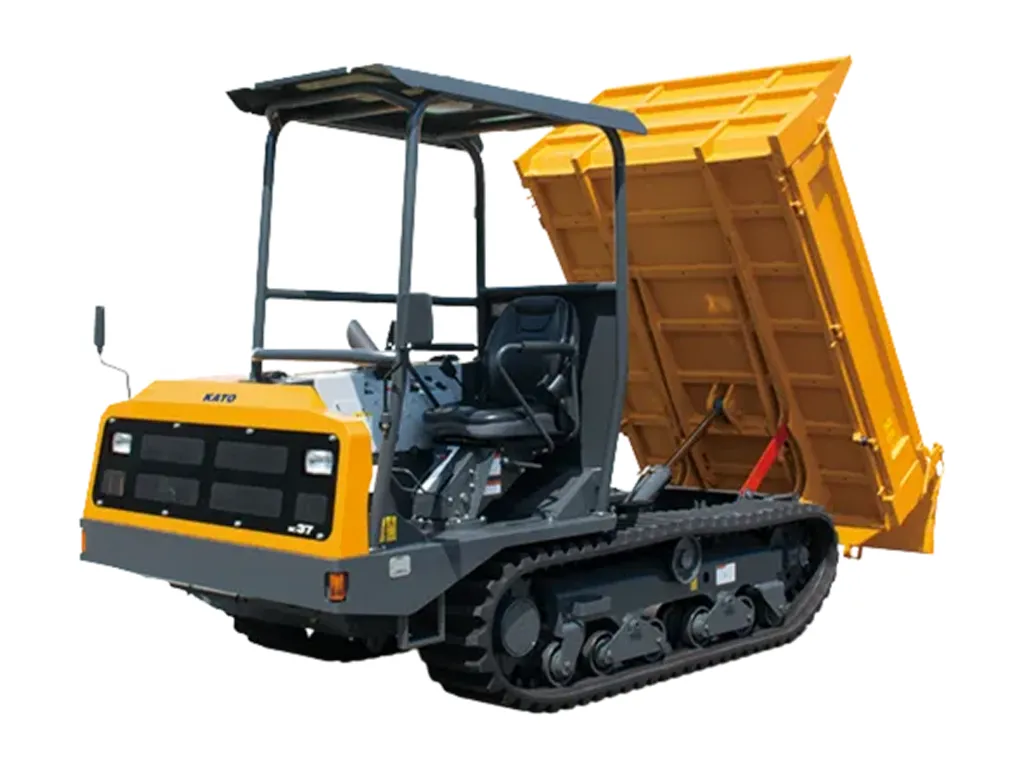

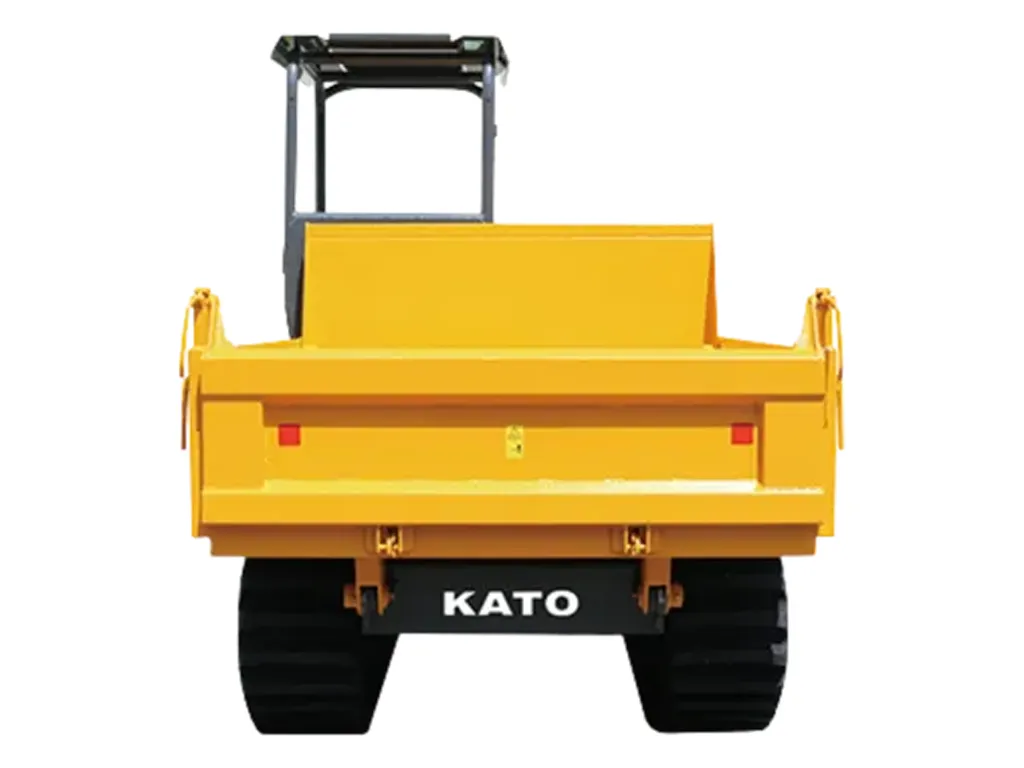

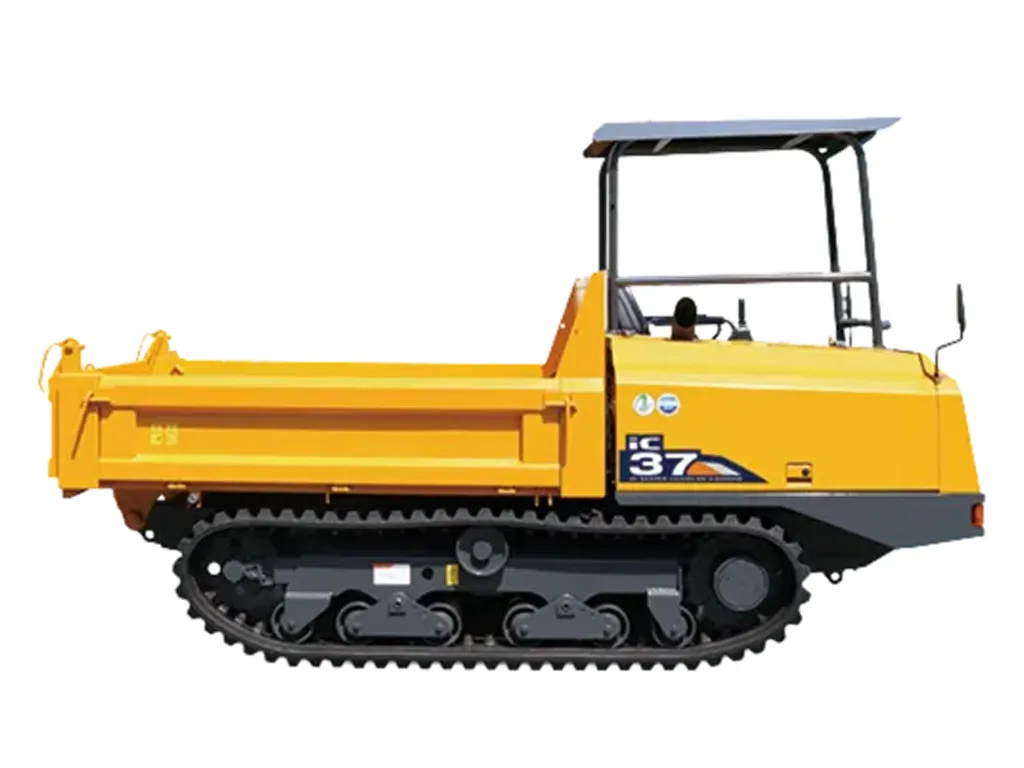

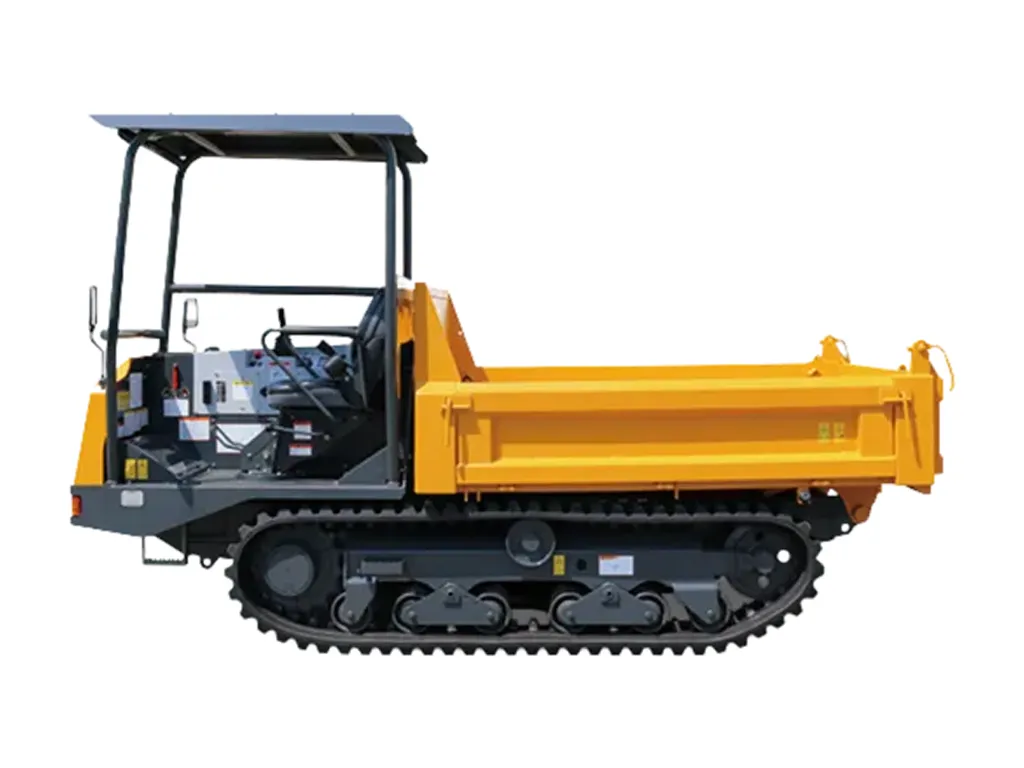

Kato IC37 Carwler Carrier
Easy to Operate, Maintain, Safe & Rugged
Class-leading payload of 8,185 lbs.
Dynamic spin-turn capability with independent travel system
Instrument panel concentrated on right side of seat
Fully opening engine cover
Ample maintenance around pump
Battery positioned for easy access
Sturdy box-type frame and durable rollers
Low center of gravity construction for outstanding durability
Inclination indicator for added safety
Thick Rubber Crawler
Specifications
Key Specs
| Overall length | 12’6’’ |
| Overall width | 5’10” |
| Overall height | 7’9” |
| Overall crawler width | 5’1” |
| Tumbler center distance | 6’11’ |
| Crawler track width | 1’2’’ |
| Minimum ground clearance | 1’.6” |
| Vessel length | 7’3” |
| Inner vessel width | 5’0’’ |
| Vessel | 16.5’’ |
| Vessel floor height from ground | 2’7’’ |
| Max dump height | 9’4’’ |
Performance
| Transport Weight | 6,415 lbs |
| Payload | 8,157 lbs |
| Ground Pressure (Empty/ Loaded) | 3.75 psi/ 8.64 psi |
| Travel Speed (Low/High) | 3.9/6.2 MPH |
| Gradeability | 20 Degrees |
Engine
| Model | Kubota V2403-CR-TE5 |
| Rated Output | 62.7 HP/ Tier 4 Final |
| Fuel Tank Capacity | 18.5 Gallons |
| Def Tank Capacity | n/a |
Vessel
| Leveled | 1.83 yards3 |
| Heaped | 2.16 yards3 |
| Dimensions LxWxH | 7’2’’ x 5’ x 1’5’ |
| Style | Three way opening vessel |
